Export netlist

easyEDA pro currently only supports the export of the network table file format of some EDA tools.

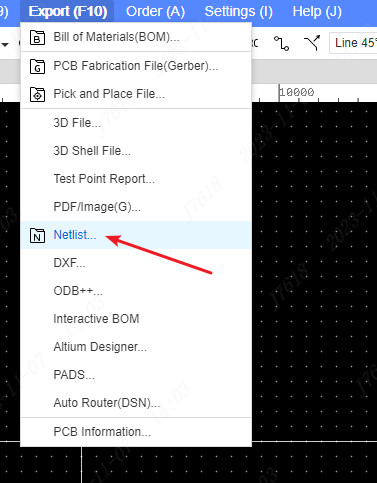

or:Top Menu -Export -Netlist

The pop -up window can modify the type of mesh table, the page range, related parameters, and file names that need to export the net table.

Netlist Type: The currently supported netlist types include Allegro(.tel)、easyEDA Pro(.enet)、PADS(.asc)、Protel2(.net)
Scope: You can choose any principle diagram of the current project, PCB
Additional attribute -Value: When the type of mesh table is Allegra, it is an additional attribute of the TEL network table. Here you can add attributes that need to be assigned
Additional attribute-TOLARANCE: When the network table type is Allegra, it is a additional attribute of the TEL network table. Here you can add attributes that need to be assigned
Netlist filename: you can modify the exported network table file name

Export netlist ​
